8dBm 5900 To 6500MHz Rf Voltage Controlled Oscillator Voltage Tuned Oscillator

Ask Lasest Price
Brand Name :	RFint
Model Number :	YSGM606506
Price :	Prices are negotiable
Delivery Time :	2-10days
Payment Terms :	T/T,Western Union,MoneyGram

Add to Cart

Product Details
Company Profile

8dBm 5900 To 6500MHz Rf Voltage Controlled Oscillator Voltage Tuned Oscillator

Standard Package 8dBm VCO 5900 to 6500MHz Voltage Controlled Oscillator with High Output Power Stability and Integration

Product Description

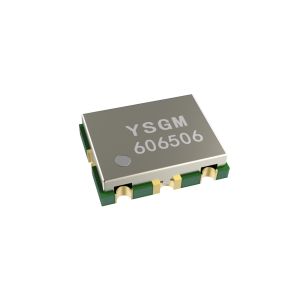

YSGM606506 is a highly integrated, standard package size VCO, using a high cut-off frequency RF transistor as an oscillating tube with high output power and good isolation.
This VCO uses high stability oscillation circuit structure, high precision varactor diode and high output power RF Triode to ensure stable starting waveform and high output power.
It adopts 5V standard voltage, which is compatible with the working voltage in the range of 3V and 6V, and has a wide tuning voltage range, which can realize the output of wide band and high power.

Characteristic parameter:

Nominal tuning frequency band	5950~6500MHz@VT=0.5V~4.5V
Output power	≥6dBm @VCC=5V
In-band flatness (BW≤200MHz)	±0.5dB
Nominal tuning frequency band	4400~5300MHz@VT=0V ~ 9V
Power supply voltage (VCC)	3V ~ 6V
Working current	11mA
Second harmonic suppression	≤ -25dBc
Third harmonic suppression	≤ -25dBc
Radio-frequency output impedance	50Ω
Universal package size	7mm x 9mm x 2mm

8dBm 5900 To 6500MHz Rf Voltage Controlled Oscillator Voltage Tuned Oscillator
